Port Entry Lights

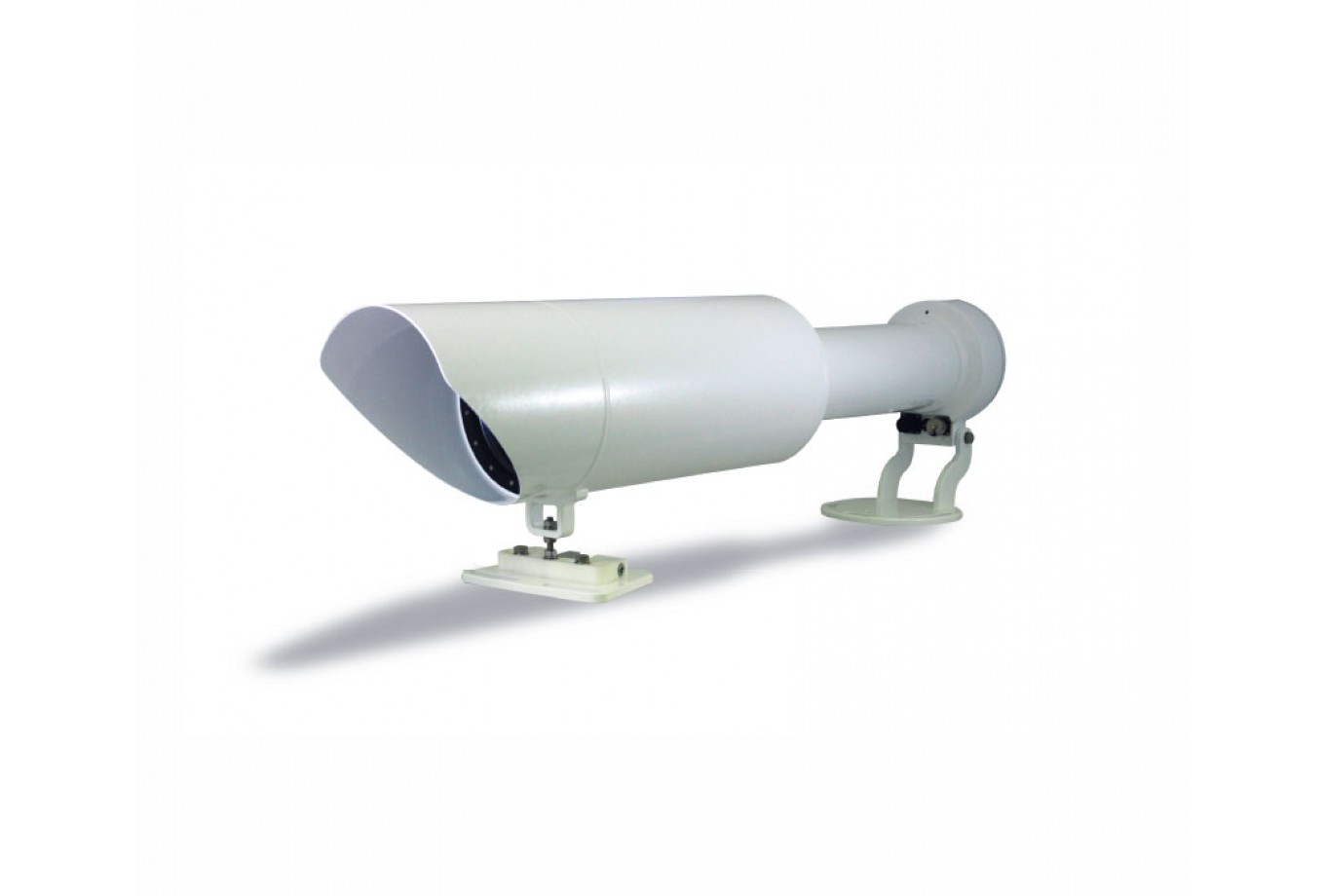

SL PEL 5 IMAGE TILE 821x700 2

SL-PEL-05 Sectored Port Entry Light 5 degree

The Sealite SL-PEL-05 is a 5 degree LED Sectored Port Entry Light which provides an overall 5 degree beam width and over 500,000cd at 30 watts. The Sealite PEL is extraordinarily efficient and ideal for solar power systems. The light is designed to suit high-precision sector applications and provides a measured changeover between colour sectors of typically one minute of arc. The Sealite PEL is extremely robust and of high-quality construction. The unit is built from CNC machined marine grade aluminium alloy, subject to 7-stage powder coating. The IP67 rated enclosure with anti-reflection coated achromatic lenses offers maximum resistance to weather.

Key Features
  • Stationary intensity of up to 500,000cd (white) with a night-time visible range of up to 23.9NM
  • Over 5NM visible day-time range
  • High precision light sectoring - measured changeover between colour sectors of typically one minute of arc
  • Low power consumption - uses 30 watts to achieve intensities that previously required 250 watts, making solar power feasible
  • LEDs can be configured for automatic night dimming, eliminating the need for moving filters
  • LEDs can be individually flashed to reduce the need to employ moving oscillating boundaries
  • Ultra-compact design, removing the need for split-assemblies & realignment on difficult access sites
  • Operates on 12-24VDC battery supply - no need for large cables
  • Extremely robust & of high quality construction
  • Convenient PC Programming via USB
  • Multiple configurations & maintenance-free
